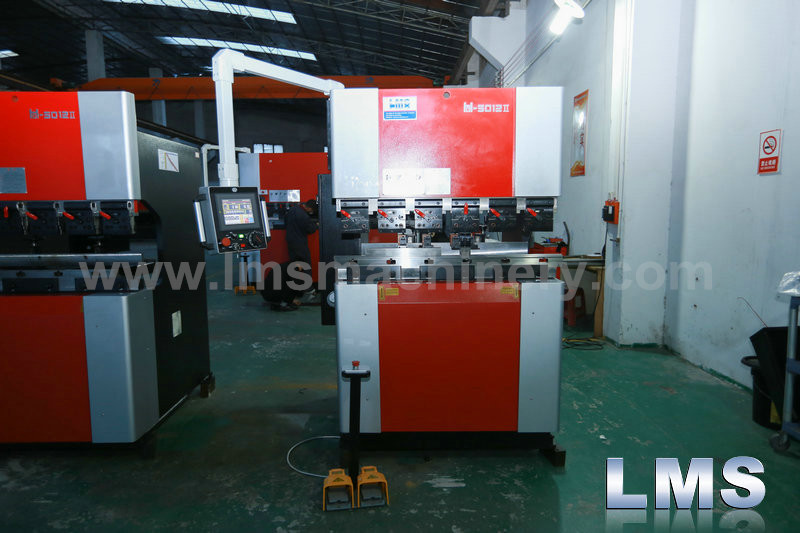

LMS UPSTROKE PRESS BRAKE WITH NC CONTROL

Product Information

SHEET METAL PROCESSING MACHINES PROFESSIONAL SUPPLIER IN CHINA



LMS GH is a modern machine manufacturer, based on NC sheet metal equipment research and development, production, sales and after-service. To meet the standard of Europe and America, we are cooperating with NADIC Corporation (Japan) for R&D, and with advanced technology and imported tools. GH NC Series machines include press brake, turret punch, planer machine, cut coin machine, etc.


COMPOSITION OF UPSTROKE PRESS BRAKE:

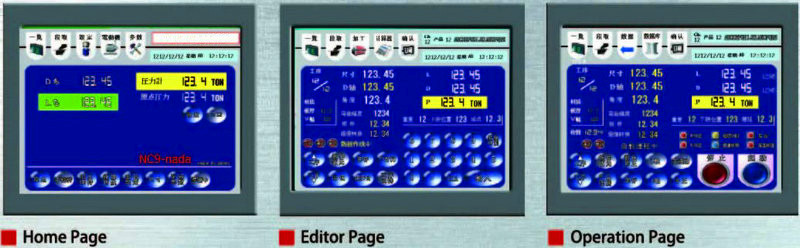

1) Mitsubishi NC System


2) Keyence PLC Monitor

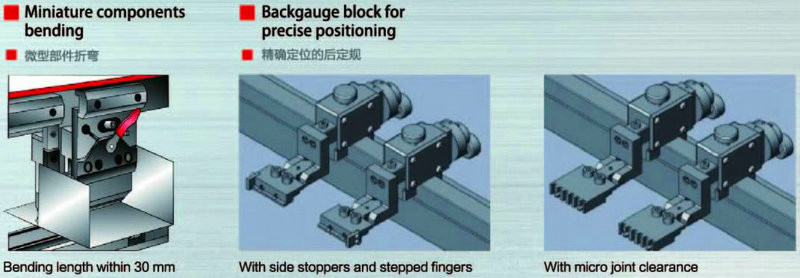

3) Precise Miniature Components

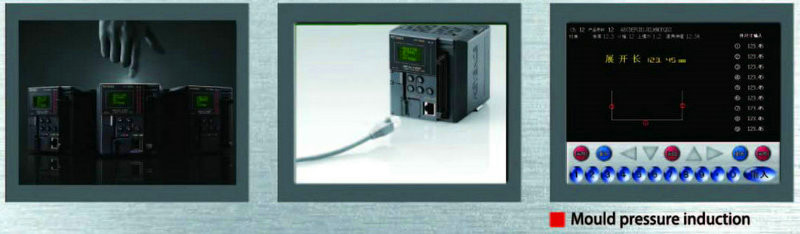

4) Keyence PLC with a Pressure Sensor

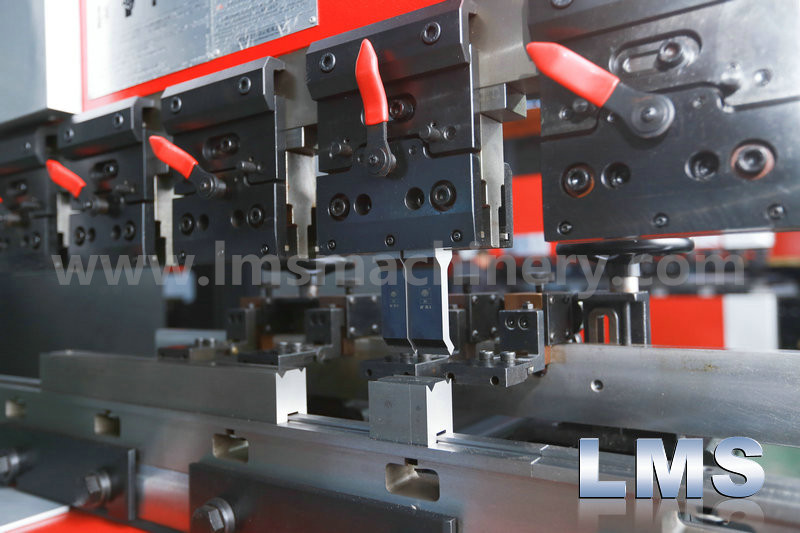

5) Bending Tool

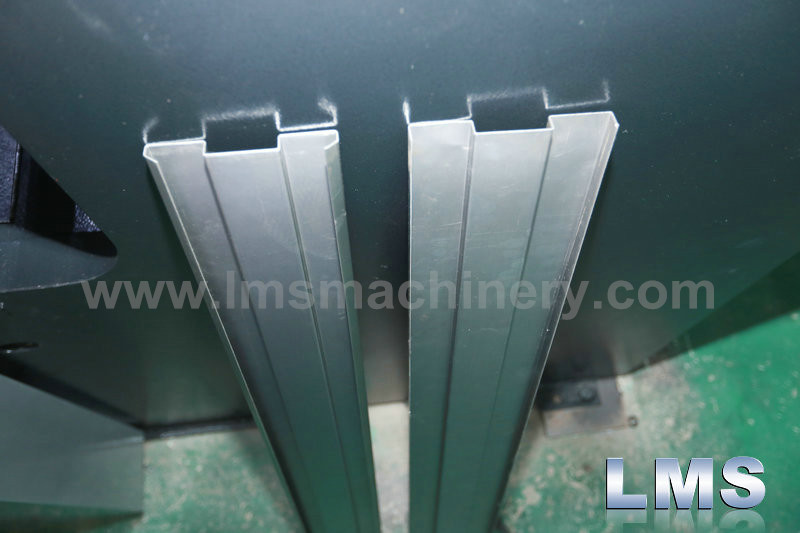

PROFILE SAMPLES:


SPECIFICATIONS:

Item / Model

Press  Capacity

kN(ton)

Max. bending length

(mm)

stroke length

(mm)

ram high closing speed

at 50/60 Hz (mm/s)

bending speed at 50/60 Hz (mm/s) ram opening speed (mm/s) machine weight (kg) motor power (kW) hydraulic oil tank capacity (L)

GH-

3512 II

350 (35) 1250 100 46/55 8.0/9.5 40 1900 2.2 30

GH-

5012 II

500 (50) 1250 100 50/60 9.0/11.0 35 2900 5.5 50

GH-

6020 II

600 (60) 2000 100 37/47 9.0/11.0 47 3500 5.5 70

GH-

1030 II

1000 (100) 3100 100 58/70 10.8/13.0 52 6700 11 95
