Electrical Enclosures Panel Roll Forming Production Line

Product Information

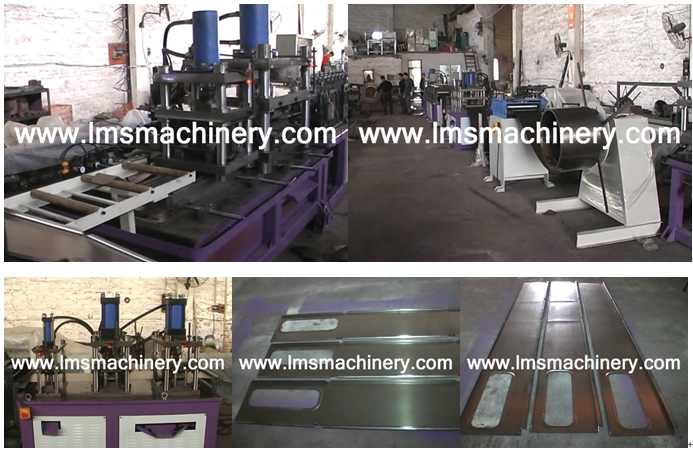

Electrical Enclosures Panel Roll Forming Production Line



Materials: G.I. Coil / CRS Coil

Material Thickness: 1.1mm

Profile specification: C125-275×23×1.1



Producing process:

Material coil—decoiling—leveling—servo-feeding—pre-punching—feeding—roll forming—post-punching—hydraulic cutting-off—finished panel



One complete set of production line mainly consists of following units:

1. Motor Decoiler                       1 set

2. Leveling Device                      1 set

3. Servo Feeder                         1 set

4. Pre-punching Unit                   1 unit

5. Roller Feeding Guide Device      1 set

6. roll forming machine                1 set

7. Power Transition                     1 unit

8. Straightening Rollers                1 set

9. Post-punching Unit                  1 unit

10. Hydraulic Cut-off Device          1 set
