U Channel Roll Forming Machine

  • Tags:U,Channel,Roll,Forming,Machine

  • Related Video:

Product Information

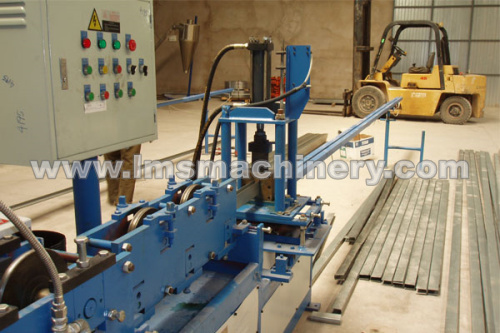

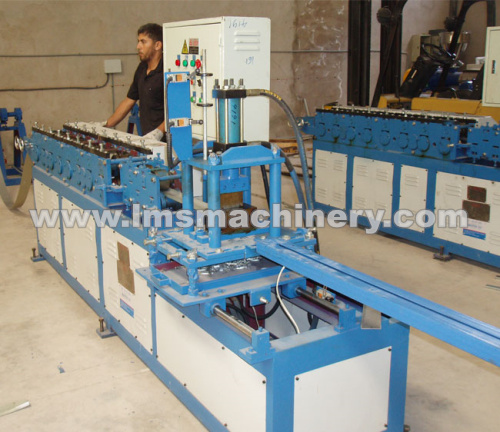

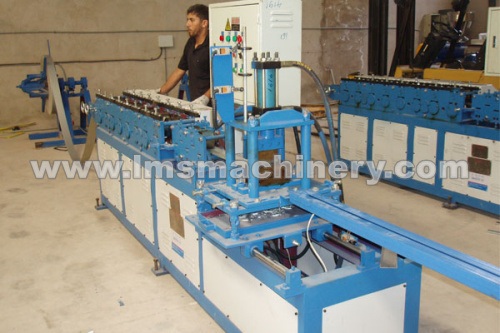

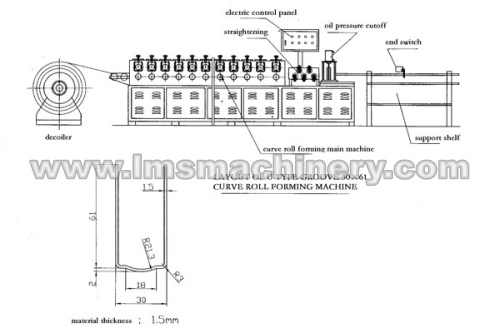

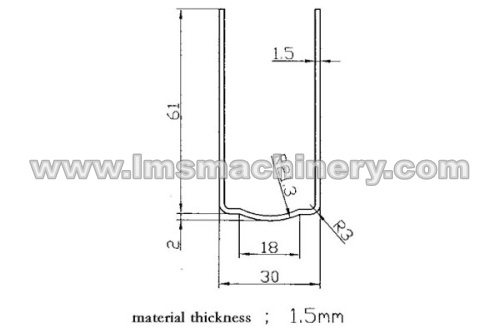

1. Channel U 30X61 technical parameter:

Width: 30 mm
Height: 61mm
Roll-forming material : Cold rolled steel coil or galvanized sheet
Material thickness: 1.5mm

production flow:
The complete C channel rollforming machine comprise following parts:
1. decoiler
apply manual expansion device.
Max. outter diameter: 1600mm
Inner diameter of coil: 450--500 mm
material width: 300mm
loading capacity: 1500kg
2. roll forming machine
rollers:10 Groups
material for rollers: GCr15 steel
hardness for heat treatment: HRC55 – 57
spindle diameter : 40mm , material :45# steel
roller spindle specification: 60208, 60207
wall thickness:22mm
Motor Power :4 kw , cycloidal needle speed reducer
Rolling Speed :10 m / min3. cut off device
hydraulic oil station motor: 3 kw
material for cut off mould: GCr12 steel
hardness for heat treatment:HRC60 – 62
cut-off operation pressure: 15 tons
4. run out table
table length :6 m
table structure, assemble by L angle.
5. control system
control by common electrical components.
electrical components adopted SHILIN( TaiWang) or joint venture products.
power supply: 380V/50HZ
