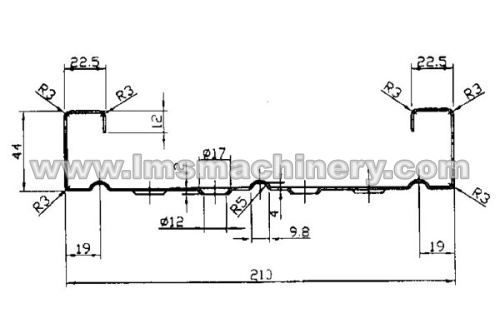

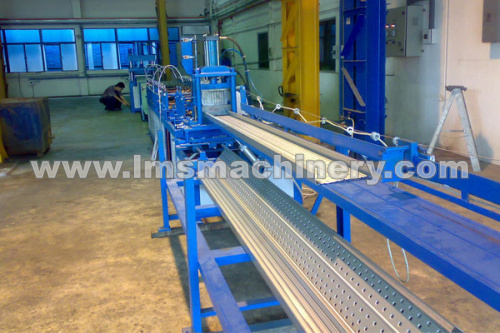

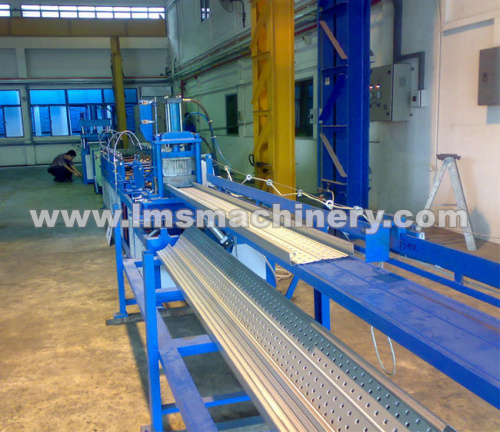

Step Panel Roll Forming Line

  • Tags:Step,Panel,Roll,Forming,Line

  • Related Video:

Product Information

Technical Parameter
1. Thickness: 1.5mm – 3.0mm
2. Purlin Length: >3000mm
3. Material: G.I steel, mild steel
4. Horizontal Distance of Punched Hole: 45-500mm
5. Forming Speed: 20m/min
6. Main Power: 20kw
7. Roller Station: 17 nos

Working Procedure

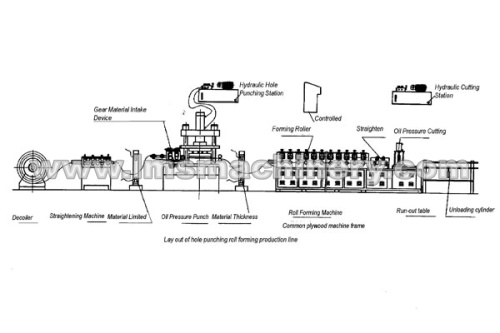

Decoiling---Leveling---Punching---Roll Forming---Straightening---Cutting

Equipped with PLC system

roll forming machinery roll forming machine

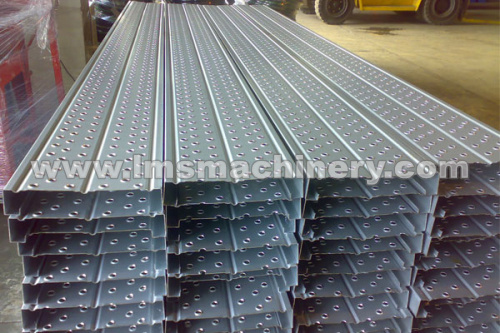

step panel made by roll forming machine roll forming machines
