1.Feature:
(1) CNC digital-controlled, with high precision.
(2) Owing to rational design, this device has good stability and can produce products with high precision & stability.
(3) Oil hydraulic for cutting & punching, with low voice and precise length location.
(4) Auto controlled, with simple operation and high efficiency.

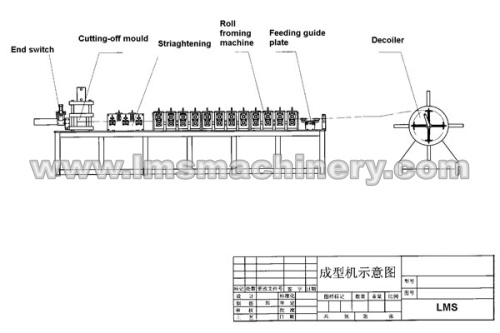

2.Composition:
(1)Decoiler:1set
(2) Guiding feed device:1set
(3) Roll forming machine (12 groups of rolling wheels):1 set
(4) 5 wheels straightening device:1set
(5) 5-45T Hydraulic Punching Machine & Hydraulic Pump:1 set
(6)Auto Length-Location Device &Circle Cool System:1 set

3. Main technical parameter:
Power: Voltage 380V±5%, 3phases, Frequency: 50HZ
Total power: 15-18kw
Air Cost: 5.0L/min
Weight: about 5.0T
Roll forming speed: 5-8m/min, machine foundation speed: ＜10m/min
