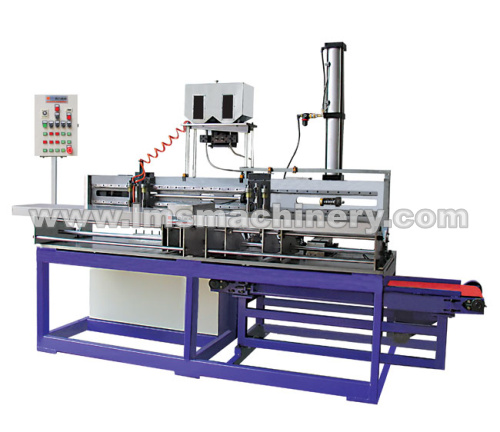

Oval Pipe Roll Forming Machine

  • Tags:Oval,Pipe,Roll,Forming,Machine

  • Related Video:

Product Information

1. Parts:
Decoiler: 1 set
Roll forming machine:1 set
Straightening device:1 set
Hydraulic cut-off device:1 set
Run-out table:1 set
Electronic control panel

2.Main technical parameter:
Suitable material: 0.5mm thickness G.I in coil (according to customer's need)
Roll forming station: 20 Nos

Material of roller: GCr 15 steel
Hardness of roller's surface:HRC55°-57°
Equip with steel saw automatic cut-off device
Manual decoiler with hand operated expansion
Main power: 7.50kw
Roll forming speed: 10M/Min
Common electronic components control components
Cut to length control by range switch and stop board

3. Product flow:

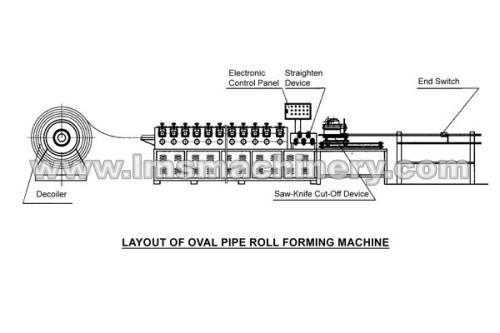

Decoiler ---roll forming--- straighten device – cut-off device— end switch—electronic control panel

production flow of roll forming machine roll forming parts of roll forming machine

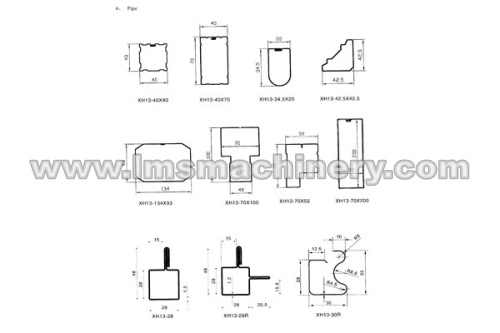

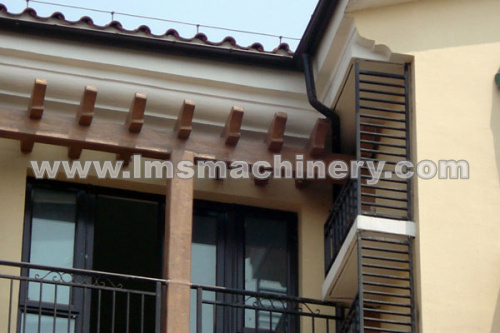

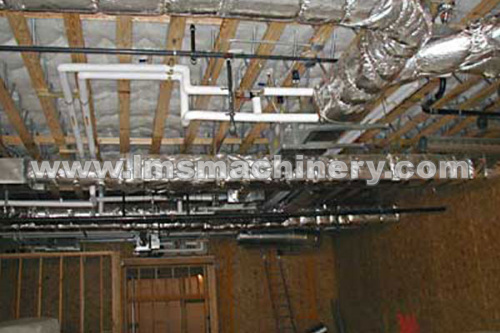

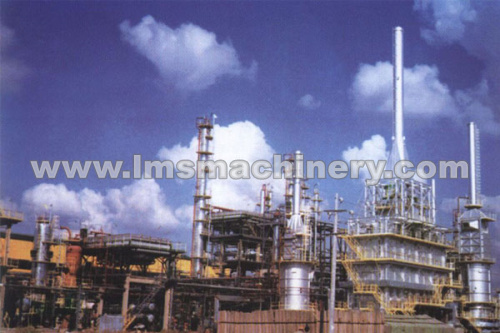

Project by roll forming machine pipe by roll forming machines pipe forming machine
