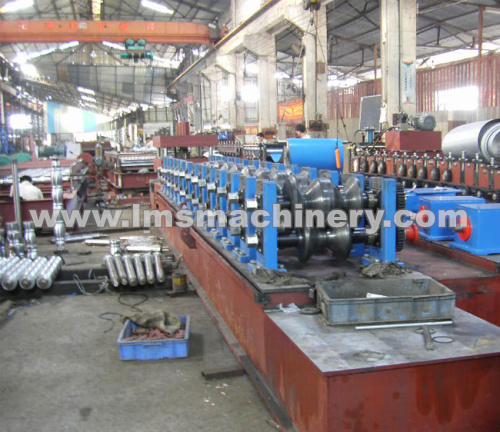

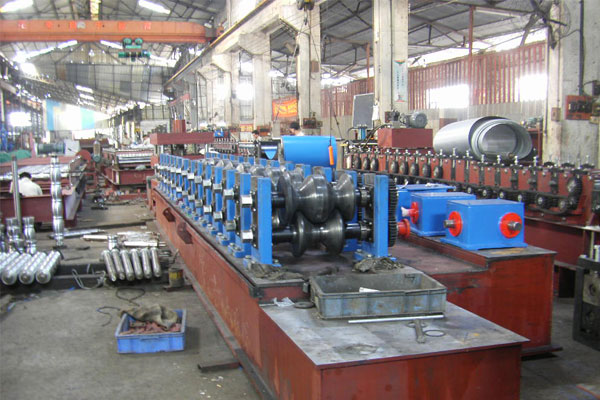

Highway Guardrail Machine

  • Tags:Highway,Guardrail,Machine

  • Related Video:

Product Information

Technical Parameter:
No. Item Parameter
1 Forming Machine Power 22 kw
2 Oil Pump Pressure 200 MPa
3 Speed of rolling 3-8m/min
4 Length 6m
5 Material Cold and heat steel plate
6 Thickness 3.0 mm
7 Width 480 mm
8 Diameter of Axis ? 72
9 Quantity of Roller 14Groups
10 Main Power 50 kw
11 Power Supplier 3 Phase 4 Lines AC380V 50HZ
12 Control Voltage 220 V
13 Air pressure 0.5-0.7 MPa

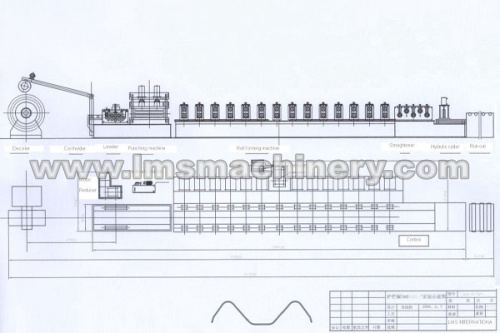

Work Flow:
Material →Leveling → Hole Punching→ Roll forming →Cutting-Off → Product
