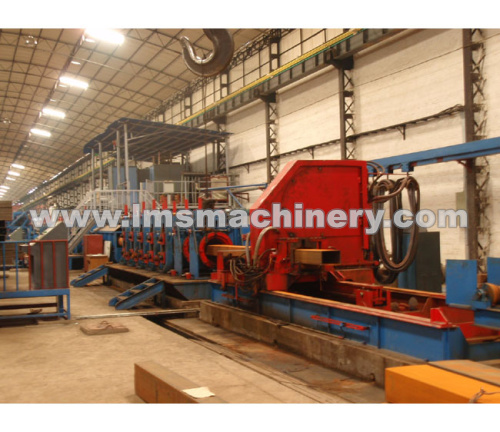

HG165 High Frequency Pipe Mill

  • Tags:lms,cnc,machine

  • Related Video:

Product Information

Capacity

1. Pipe Diameter: ?76mm ?165mm

2. Wall Thickness: 2.0mm 6.0mm

3. Milling Speed: 20 50m/min

4. Material: Low-carbon steel/Low alloy steel  δs ≤ 345Mpa,δb ≤ 610Mpa





S. No.

Name of Equipment

Quantity

Remark

1

Hydraulic Decoiler

1



2

Cage Accumulator

1



3

Feeding & Flattening

1



4

Roll Forming Machine

1



5

HF Machine

1



6

Burr-Cleaning Device

1



7

Water-Cooling System

1



8

Sizing Device

1



9

Straightening Device

1



10

Main Drive System

1



11

CNC Flying Saw

1



12

Run-out Table

1







Hydraulic Decoiler

1. Loading Capacity: 5000kg

2. Coil Width: 240 520mm

3. Thickness: 2.0mm 6.0mm

4. Inner Diameter: ?600mm ?800mm

5. Outer Diameter: ?1200mm ?1500mm





Power Supply

1. Equipment Motor Power: 160kw x 2+ 55kw +30kw+30kw=435kw

2. Power of HF station: 600kw





Front Shear and Welding Machine

Ensure the continuous feeding of material





Cage Accumulator

1. Accumulation Capacity: 150 300mm

2. Feeding Speed: ≥ 100m/min

3. Manual adjusting

4. Motor Power: 30kw





Feeding & Flattening & Roll Forming Machine

1. Two feeding rollers and five flattening rollers

2. Forming machine

---Horizontal roller station: 7 sets

  Roller Shaft: ?110mm, 40Cr

  Roller Material: 45# steel

---Vertical roller station: 9 sets

  Roller Shaft: ?70mm, 40Cr

  Roller Material: 45# steel

---Drive Gear Box: 7 sets

  Gear: 40CrMnTi and 40Cr, shaft: 40Cr

14 sets of transmission shaft

---Extruding and scrap collecting

---Burr-cleaning Device

---Sizing Device

---Straightening Device





Water Cooling System







HF Station

1. Power Supply: 380V/220V, 50HZ

2. Working Power: 600KW





Main Driving System

1. Main Motor: Z4 series, DC 160KW

2. Main Reducer: ZQ850-9.67



CNC Flying Saw

1. Cutting Thickness: 2.0mm 6.0mm

2. Cutting Length: 4 8m

3. Cutting O.D: ?76 ?165mm

4. Cutting Speed: 6-8 cuts/min

5. Cutting Tolerance: ≤ 6mm

6. Motor Power: 55 kw, grade 2 AC motor
